Patented
Key Features
- Allows dynamic 3D displacement cable motion
- Gives 360° by 317° displacement cable orientation flexibility
- Unique curved cable guiding surface allows for dynamic displacement cable motion
- Rugged anodized aluminum, shielded stainless steel bearings, and engineering plastics construction
- Mountable on the position transducer or via independent mounting base
- Reduces the need for flexible position transducer mounting bases
- Saves time: no need to re-locate or re-orient the position transducer after installation
|
|
Flexibility Demonstration
A demonstration of the 3D cable motion capability of the RoundAbout™ cable guide.
Specifications
| Parameter |
Value |
| Materials |
anodized aluminum, stainless steel, engineering plastics |
| Displacement Cable Compatibility |
0.018-inch (0.46-mm) dia. optimum, up to 0.027-inch (0.69-mm) dia. possible with reduced lifetime |
| Mechanical Life |
40 million linear cable inches min estimated using 0.018-inch (0.46-mm) dia. cable |
| Operating Temperature |
-85° to +257° F (-65° to +125° C) |
| Shock, Vibration |
100 g for 6 ms, 10 to 2000 Hz at 15 g |
| Nominal Mass |
2 oz (60 g) |
| Environmental Protection |
NEMA 3S / IP 44 |
Part Numbers
| Part Number |
Description |
| 301224 |
cable guide: RoundAbout™, standalone |
| 301225 |
cable guide: RoundAbout™, with mounting base |
| 301202 |
mounting base: RoundAbout™ |
The RoundAbout™ cable guide may also be ordered already installed on Series 16_ and Series 6 position transducers. The RoundAbout™ cable guide cannot be installed by the user to existing position transducers.
Application Examples
 |
 |
 |
| 5th wheel and trailer hitch tracking |
simulator control |
aircraft ground testing |
 |
 |
 |
| automotive suspension monitoring |
local GPS systems |
material handling |
Drawing
RoundAbout™ cable guide mounted to position transducers (pn 301224)

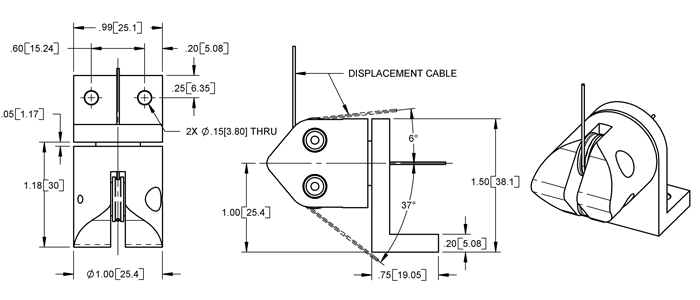

RoundAbout™ cable guide with mounting base; displacement cable angular flexibility: 360° continuous by +174° -143° (pn 301225)
Need something not shown? Complete a Custom Solution Request.
All dimensions are REFERENCE and are in inches [mm] • Document number: S021S(050526)
|
